Compounding systems for Soft PVC

The creation of PVC from vinyl chloride (VC) was first described during the first half of the nineteenth century. Large-scale PVC production started in 1928 in the USA and 1930 in Germany. By the time the Second World War ended, it was already the most-produced plastic. With a chlorine content of 56.7% molar mass, PVC is a welcome co-product in chlorine production. Due to their low content of hydrocarbon-based components, PVC materials have a comparatively favourable energy balance and carbon dioxide footprint.

With plasticizers and other additives, the characteristics of PVC materials can be customized according to application requirements.

From the mechanical point of view, these plasticizers can be regarded as “hinges” or “spacers” from the neighbouring macromolecules. The larger the plasticizer molecules, the lower the migration rate under extreme loading.

Soft PVC (PVC-P) in general is produced in the compounding system by hot/cold mixing in the powder phase followed by compounding and pelletizing on a Buss Co-Kneader for all subsequent processes requiring a pellet or granulate. The substantial content of plasticizers, stabilizer packages, and in many cases, high fillers content as well, demand targeted and precisely controlled processing.

Compounding systems for PVC-P - application in thin transparent hose as an example
Deep blue granules from a rigid PVC compounding process
Grey granules from a plasticized PVC compounding system
Compounding systems for PVC-P - application in a blood bag as an example
Lilac-coloured granules from a soft PVC compounding system
Pinkish granules from a PVC-P compounding machinery

Typical applications

Because PVC can be used in applications at a wide temperature range of -50 to 70°C (sustained), it can be applied to hoses, plugs and buffer elements. Thanks to its good electrical insulation properties, soft PVC (PVC-P) is the preferred wire and cable insulation material for voltages up to 10 kV. Soft PVC is very widely used in the building industry; for example, for sealing wall joints and windows; as elastic or sliding coverage material, for surfacing floors, tables and walls, and for many other applications. In medical technology, highly sophisticated systems for conserving blood and infusion solutions are made almost exclusively of this material. There are numerous other applications in the automotive, packaging and clothing industries that have existed for a long time and are being continuously improved and developed. With regard to sustainability and growth, please refer to the section on rigid PVC applications.

Compounding requirements for Soft PVC

Compounding requirements can be summed up as follows. The plasticizers and other constituents like stabilizers, additives, fillers, reinforcement materials and flame retardants are absorbed into the porous PVC grain and must be systematically gelled, dispersively and distributively mixed, and agglomerated in the compounding systems – all in compliance with well-defined temperature limits.

Additional property requirements can be achieved by alloying other polymers with PVC during the compounding process. Examples of this include the use of TPU with flexible PVC to improve abrasion resistance, as well as oil and flame resistance. PVC and Nitrile Rubber blends improve low temperature flexibility and chemical resistance. PVC with nitrile rubber or TPU can be alloyed to improve hot melt strength got medical applications, as well as abrasion resistance and durability. PVC/EVA provide reduced plasticizer volatility and improved chemical resistance, while PVC/CPE provides improved compression set and low temperature flexibility.

The BUSS Kneader can make the most of its strengths profile at uniform, moderate and if necessary adjustable shear rates. Free capacities along the processing axis are designed and realized according to requirements. Low specific energies with the most intensive mixing processes, volumetric scale-up procedures, and maximum availability are possible due to wide operation windows. These are the advantages that underline more than sixty years of technological and market leadership in compounding plasticized PVC.

Syringe and infusion tube from soft PVC demonstrates the use of PVC-P produced in a compounding machinery

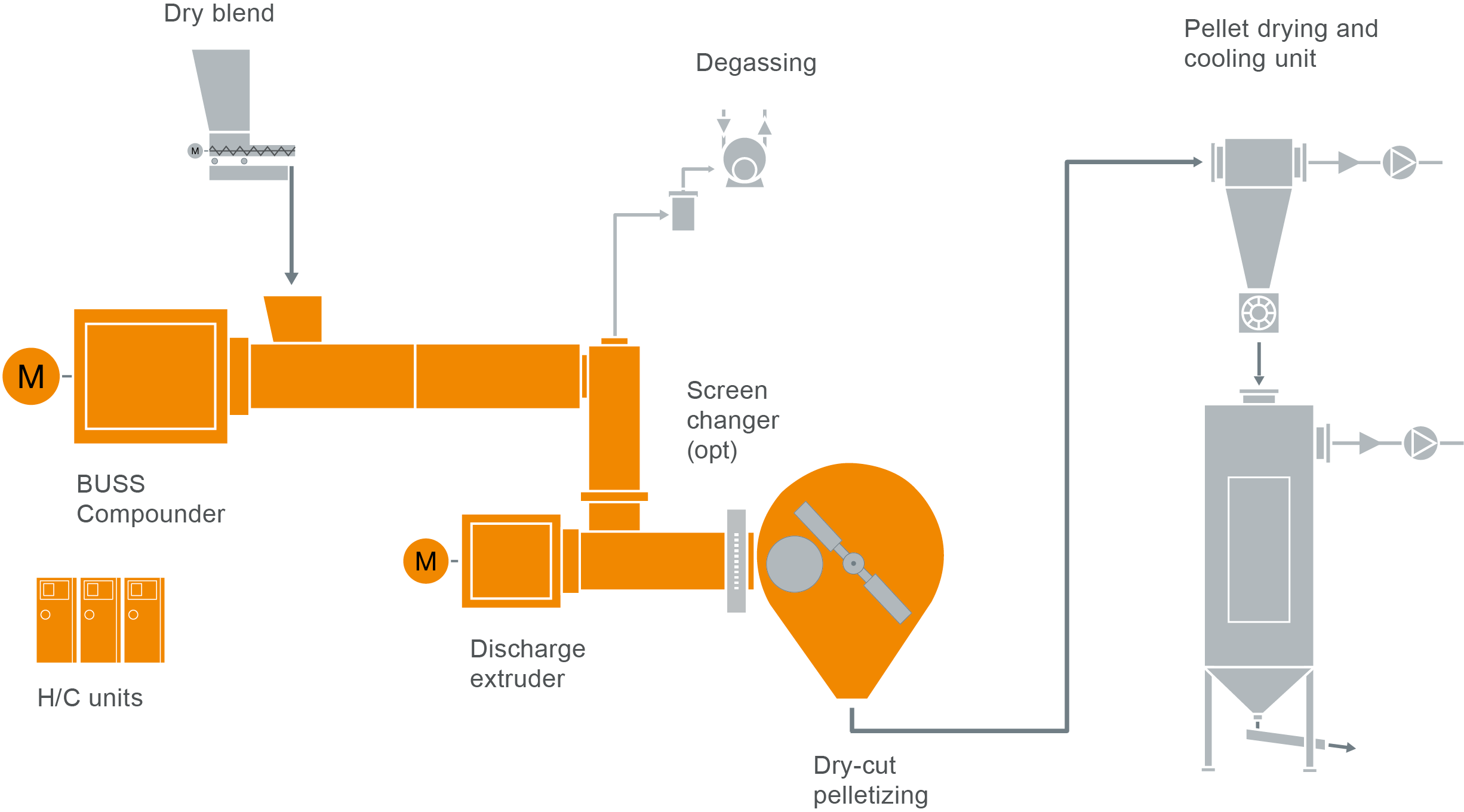

Typical plant layout for compounding soft PVC

Typical plant layout for a soft PVC (PVC-P) compounding system

BUSS compounding systems for compounding soft pvc offer the following specific benefits

  • Compounding and pressure build-up optimized in two independent steps
    Mixing on the BUSS Kneader and pressure build-up in the discharge unit are separated to enable the efficient optimization of both steps. This compounding system allows mixing at low pressure and temperature as well as optimized pelletizing, while maintaining temperature control at all times.

  • Intensive distributive mixing
    The BUSS Kneader achieves intensive distributive mixing because the combined rotation and axial motion of the Kneader screw generates extensional flow, a large number of shear interfaces, and cross channel mixing.

  • Uniform, moderate shear rates
    Uniformly moderate shear rates allow controlled mixing in the compounder at lower temperatures while imparting only the required shear for the task at hand. The narrow shear rate distribution compared to alternative compounding systems ensures uniform shear histories for every individual particle. This results in high quality compounding with reduced energy input.

  • Degassing of volatiles
    Volatiles are typically removed by a vacuum degassing opening at the end of the barrel or additionally in the discharge unit. Continual highlevel compound surface renewal is achieved with the large number of mixing cycles, striations and foldings created by the BUSS Kneader technology, thus enabling entrapped air or volatiles to be minimised in a highly efficient manner.

  • Wide, resilient operation window
    A desirably wide processing window is readily achieved with the calendering compounding machine by BUSS. Its controlled shear output and low pressures and temperatures in the processing barrel ensure easily controlled process conditions. The BUSS Co-Kneader features excellent temperature control owing to constant monitoring by thermocouples mounted in kneading pins and surrounded by polymer.
